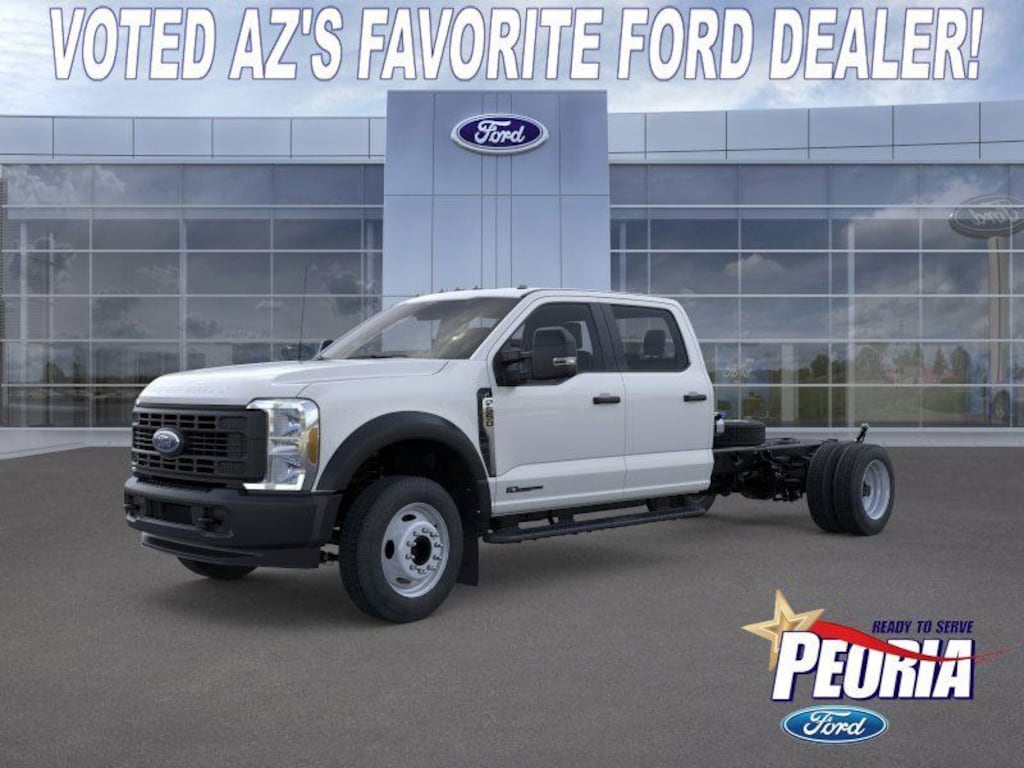

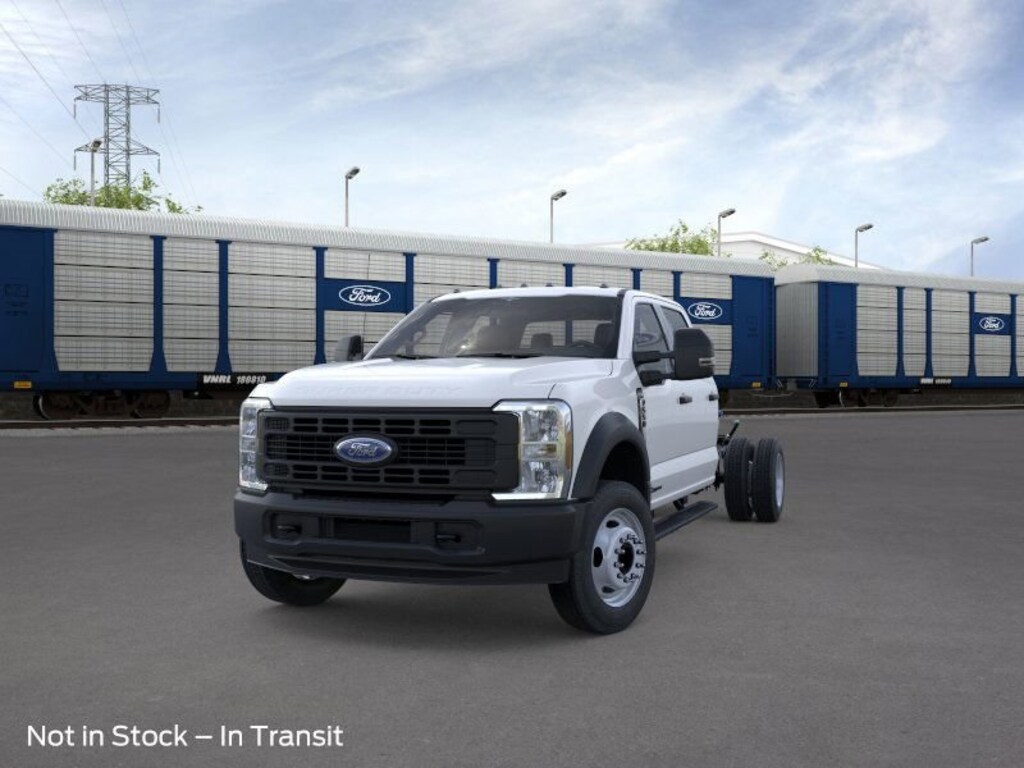

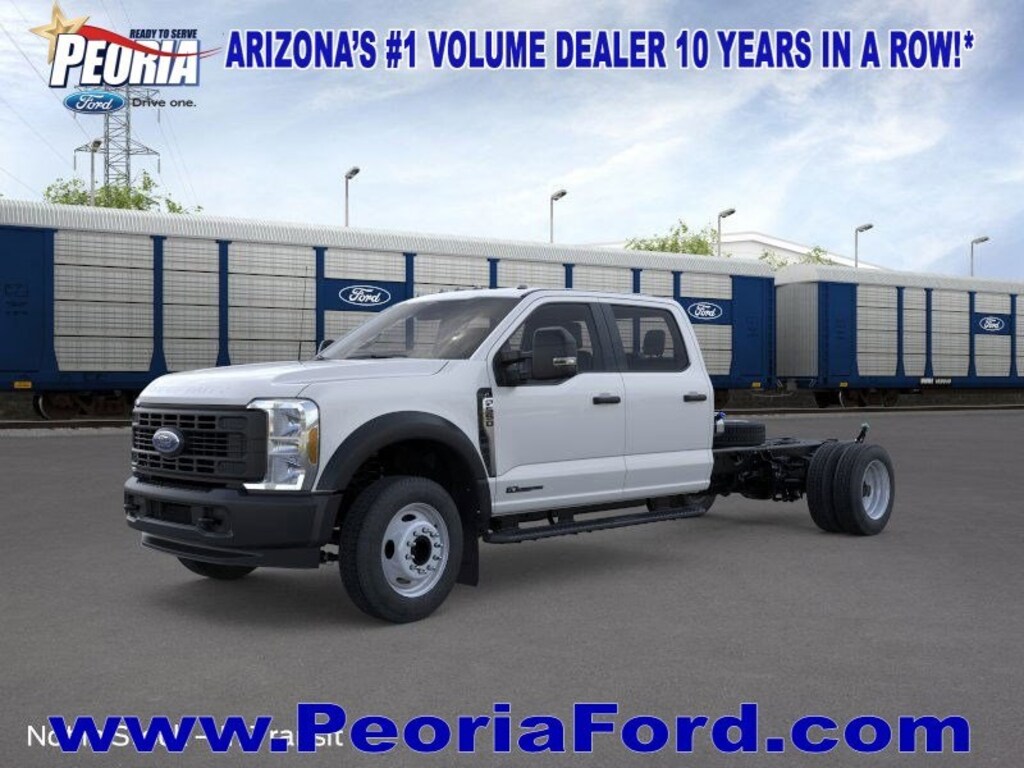

New 2026 Ford F-550 Chassis Truck Crew Cab Photo 1 of 24

New 2026 FordF-550 Chassis Truck Crew Cab V-8 cyl

    Exterior Color
    Oxford White
    Interior Color
    1S CLOTH 40/20/40 SEAT MEDIUM DARK SLATE
    Body/Seating
    Truck Crew Cab/6 seats
    Transmission
    44G 10-SPEED AUTO TORQSHIFT
    Drivetrain
    4x2
    Engine
    V-8 cyl
    VIN
    1FDSW5GT9TED49231
    Stock Number
    TED49231
    Ford F-550 Chassis

    Highlighted Features

    • Lane departure
    • Emergency communication system
    • Wireless phone connectivity
    • Exterior parking camera rear
    • Split folding rear seat
    • Perimeter/approach lights
    • Remote keyless entry
    • Steering wheel mounted audio controls
    • Fully automatic headlights
    • Security system
    • Dual rear wheels
    • Heated door mirrors

    Included Packages & Accessories

    • Cloth 40/20/40 Split Bench Seat
    • Limited Slip with 4.30 Axle Ratio
    • Platform Running Boards
    • 50-State Emissions System
    • Trailer Brake Controller
    • High Capacity Trailer Tow Package
    • 350 Amp Dual Alternators
    • GVWR: 19,550 Lb Payload Plus Upgrade Package 2
    • Rear View Camera and Prep Kit
    • Order Code 660A
    • Engine: 7.3L 2V DEVCT NA PFI V8 Gas
    • 190 Amp Alternator
    • Transmission: TorqShift 10-Speed Automatic
    • 4.88 Axle Ratio
    • GVWR: 18,000 lbs Payload Package
    • Tires: 225/70Rx19.5G BSW A/P
    • Wheels: 19.5" x 6" Argent Painted Steel
    • HD Vinyl 40/20/40 Split Bench Seat
    • Radio: AM/FM Stereo with MP3 Player
    • SYNC 4
    • Engine: 6.7L 4V OHV Power Stroke V8 Turbo Diesel B20
    • 4.10 Axle Ratio
    • Dual 68 AH/65 AGM Battery
    • 250 Amp Alternator
    • Pro Power Onboard - 400W Outlet
    • Spare Tire and Wheel
    • 6-Ton Hydraulic Jack

    Installed Packages & Options

    • Engine: 6.7L 4V OHV Power Stroke V8 Turbo Diesel B20$10,995
      • 4.10 Axle Ratio
      • Dual 68 AH/65 AGM Battery
      • 250 Amp Alternator
    • Spare Tire and Wheel$350
      • 6-Ton Hydraulic Jack
    • Pro Power Onboard - 400W Outlet$225
      • Dual 68 AH/65 AGM Battery
    Included Options
    • Cloth 40/20/40 Split Bench Seat$315
    • Limited Slip with 4.30 Axle Ratio$395
    • Platform Running Boards$445
    • Trailer Brake Controller$300
    • High Capacity Trailer Tow Package$580
    • GVWR: 19,550 Lb Payload Plus Upgrade Package 2$1,155
    • Rear View Camera and Prep Kit$515

    Detailed Specifications

    • 1-touch down
    • 1-touch up
    • Air conditioning
    • Emergency communication system: SYNC 4 911 Assist
    • Front beverage holders
    • Illuminated entry
    • Overhead console
    • Passenger vanity mirror
    • Power windows
    • Rear beverage holders
    • Remote keyless entry
    • Speed control
    • Telescoping steering wheel
    • Tilt steering wheel
    • Dual rear wheels
    • Front anti-roll bar
    • Front tires: 225/70SR19.5G
    • Power steering
    • Rear anti-roll bar
    • Rear tires: 225/70SR19.5G
    • Wheel size: 19.5"
    • 1st row LCD monitors: 2
    • AM/FM radio
    • Primary LCD size: 8.0"
    • Smart device integration
    • Speakers: 6
    • Steering wheel mounted audio controls
    • Wireless phone connectivity: SYNC 4
    • Basic warranty: 36 months/36,000miles
    • Corrosion perforation warranty: 60 months/ unlimited distance
    • Diesel engine warranty: 60 months/100,000miles
    • Powertrain warranty: 60 months/60,000miles
    • Roadside assistance coverage: 60 months/60,000miles
    • Front center armrest: w/storage
    • Front seats: bench
    • Manual driver lumbar support
    • Max seating capacity: 6
    • Rear seats: split-bench
    • Rear seats Folding position: fold-up cushion
    • Seat Upholstery: cloth
    • Split folding rear seat
    • Compressor: intercooled turbo
    • Cylinder configuration: V-8
    • Drive type: rear-wheel
    • Engine liters: 6.7L
    • Engine location: front
    • Fuel tank capacity: 40.0gal.
    • Horsepower: 330hp @ 2,200RPM
    • Hybrid traction battery type: none
    • Limited slip differential: mechanical
    • Manual-shift auto: SelectShift
    • Mode select transmission
    • Number of valves: 32
    • Recommended fuel: Diesel
    • Sequential multi-point fuel injection
    • Standard fuel economy fuel type: diesel
    • Torque: 950 lb.-ft. @ 1,800RPM
    • Transmission: 10 speed automatic
    • Variable valve control
    • Ground clearance (min): 218mm (8.6")
    • Heated door mirrors
    • Left rear passenger door: conventional
    • Power door mirrors
    • Right rear passenger: conventional
    • Trailer sway control
    • Turn signal indicator mirrors
    • Compression ratio: 15.20 to 1
    • Curb weight: 3,523kg (7,766lbs)
    • Engine bore x stroke: 99.1mm x 108.0mm (3.90" x 4.25")
    • Engine displacement: 6.7 L
    • Engine torque: 950 lb.-ft. @ 1,800RPM
    • Exterior body width: 2,032mm (80.0")
    • Exterior height: 2,103mm (82.8")
    • Exterior length: 6,736mm (265.2")
    • Front headroom: 1,036mm (40.8")
    • Front hiproom: 1,588mm (62.5")
    • Front legroom: 1,115mm (43.9")
    • Front shoulder room: 1,694mm (66.7")
    • GVWR: 8,868kg (19,550lbs)
    • Interior maximum rear cargo volume: 1,475 L (52 cu.ft.)
    • Passenger volume: 3,729L (131.7 cu.ft.)
    • Payload: 4,926kg (10,860lbs)
    • Rear headroom: 1,026mm (40.4")
    • Rear hiproom: 1,643mm (64.7")
    • Rear legroom: 1,107mm (43.6")
    • Rear shoulder room: 1,674mm (65.9")
    • Towing capacity: 8,391kg (18,500lbs)
    • Turning radius: 7.8m (25.6')
    • Wheelbase: 4,547mm (179.0")
    • Appearance: digital/analog
    • Compass
    • Configurable
    • Delay-off headlights
    • Exterior parking camera rear
    • Front reading lights
    • Fully automatic headlights
    • Lane departure: Lane Departure Warning warning
    • Low tire pressure warning
    • Outside temperature display
    • Rear reading lights
    • Tachometer
    • Trip computer
    • Variably intermittent wipers
    • 4 wheel disc brakes
    • ABS brakes
    • Brake assist
    • Dual front impact airbags
    • Dual front side impact airbags
    • Forward collision: Pre-Collision Assist with Automatic Emergency Braking (AEB) mitigation
    • Ignition disable
    • Overhead airbag
    • Panic alarm
    • Perimeter/approach lights
    • Security system
    • Traction control

    Standard Features

    • 4.10 Axle Ratio
    • Dual 68 AH/65 AGM Battery
    • 250 Amp Alternator
    • 6-Ton Hydraulic Jack
    • Dual 68 AH/65 AGM Battery
    • SYNC 4
    • Engine: 7.3L 2V DEVCT NA PFI V8 Gas
    • Transmission: TorqShift 10-Speed Automatic
    • 4.88 Axle Ratio
    • GVWR: 18,000 lbs Payload Package
    • Tires: 225/70Rx19.5G BSW A/P
    • Wheels: 19.5" x 6" Argent Painted Steel
    • HD Vinyl 40/20/40 Split Bench Seat
    • Radio: AM/FM Stereo with MP3 Player
    • 190 Amp Alternator

    Dealer Notes

    Want to stretch your purchasing power? Check out this 2026!

    An American Icon. Turbocharger technology provides forced air induction, enhancing performance while preserving fuel economy. Ford prioritized practicality, efficiency, and style by including: fully automatic headlights, tilt and telescoping steering wheel, and power windows. It features an automatic transmission, rear-wheel drive, and a powerful 8 cylinder engine.

    Our team is professional, and we offer a no-pressure environment. They'll work with you to find the right vehicle at a price you can afford. Stop in and take a test drive!

    MSRP1
    $77,535
    Price
    $77,535
    $1,378/mo

    60 Months @ 6.9% A.P.R. (estimated financing rate) $7,754 Down Payment
